Description

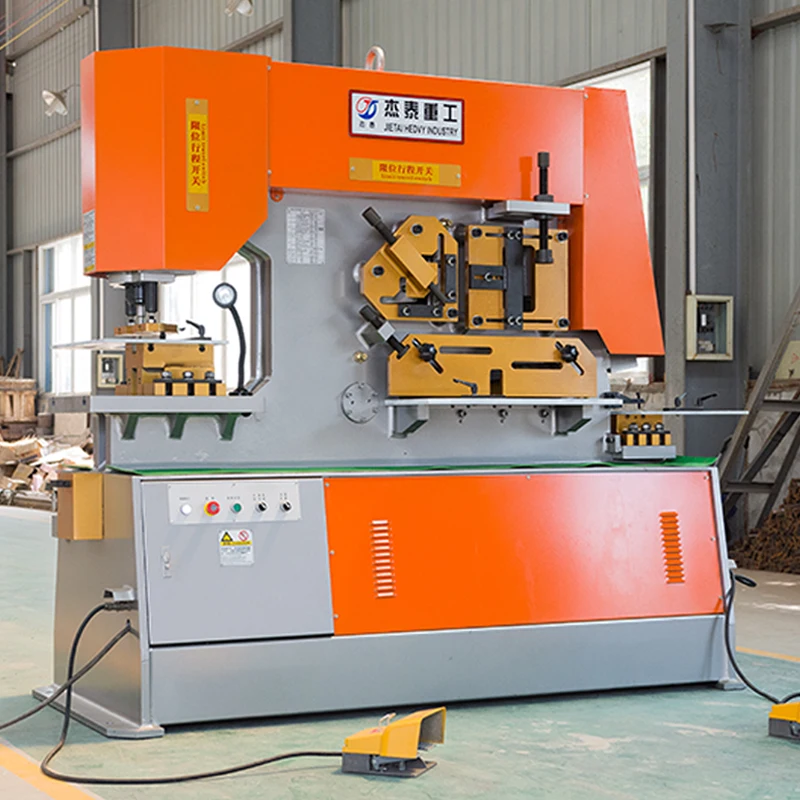

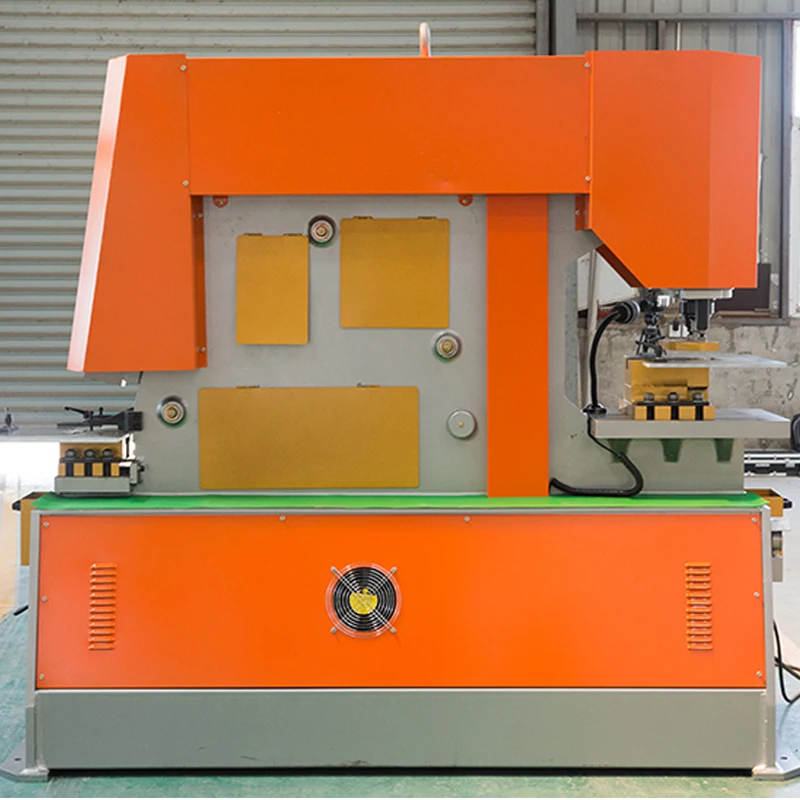

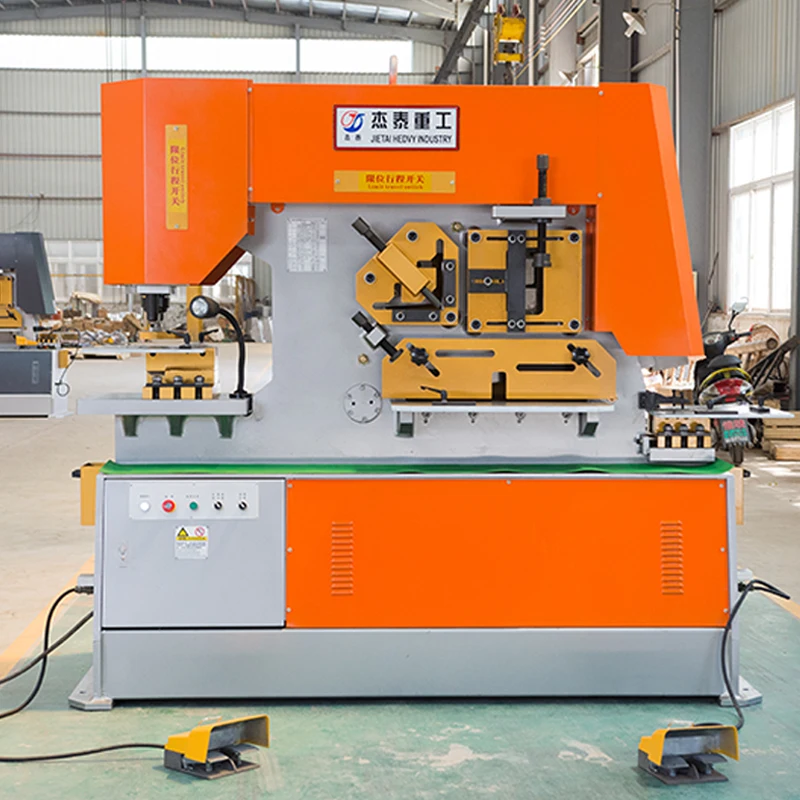

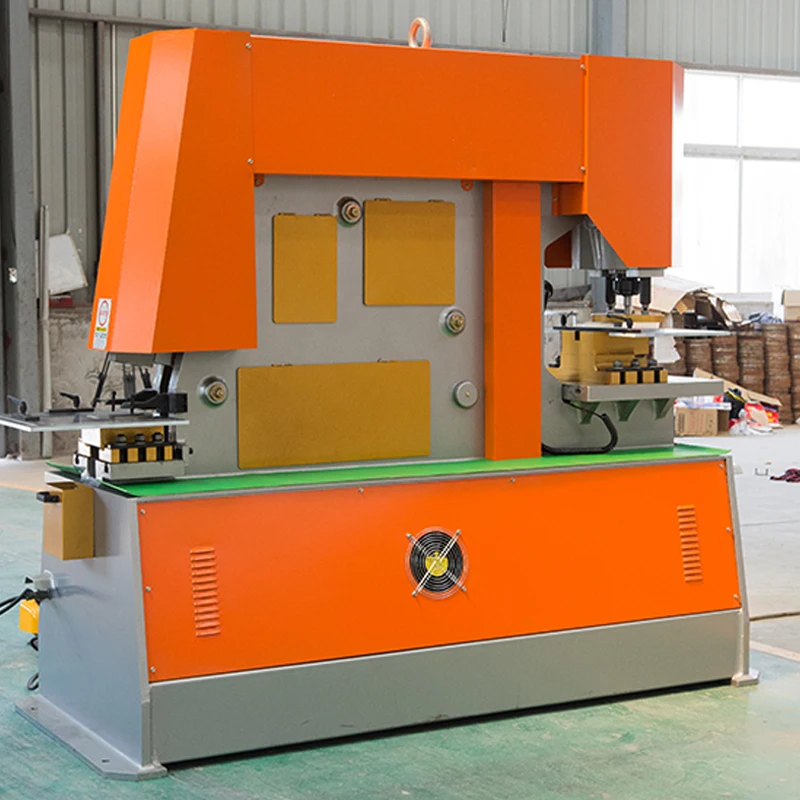

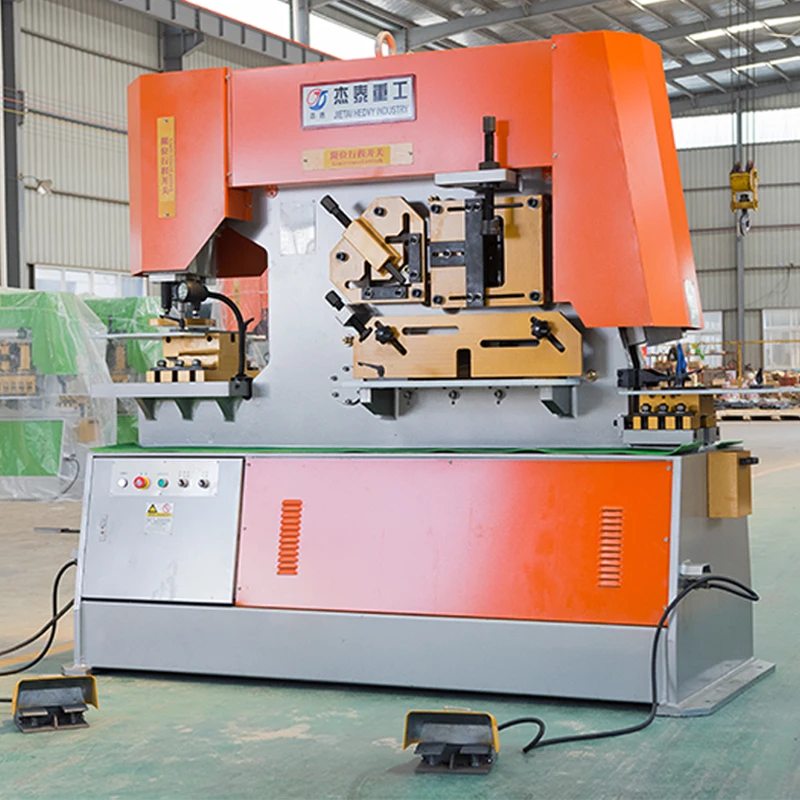

The hydraulic combined punching and shearing machine is a kind of equipment with hydraulic drive as the core and integrated with multiple metal processing functions. Its core advantage is "multi-purpose in one machine" — it can complete operations such as punching and shearing on a single machine without frequent equipment replacement. It is widely used in fields like steel structure manufacturing. hardware production. and electric power. and is suitable for processing small and medium-sized metal component
Core Functions (The Essence of "Combined")– Punching: Creates circular. square. and special-shaped holes (e.g.. bolt holes for steel structures) on profiles such as steel plates. angle steels. and channel steels.- Shearing: Cuts flat steel plates. profiles (including angle steels/channel steels). and bar materials (such as round steels/square steels).- Auxiliary Functions: Some models also support simple edge folding (bending of steel plates) and die shearing (cutting specific shapes by replacing dies).
Working Principle (Hydraulic Drive Logic)1. The motor drives the hydraulic pump to generate high-pressure oil. converting electrical energy into hydraulic energy.2. The high-pressure oil controls its flow direction through the hydraulic valve group to drive the hydraulic cylinder into action.3. The hydraulic cylinder pushes components such as punches and shears. applying pressure/shearing force to the metal to complete processing.4. After processing. the system releases pressure. the components reset. and the machine enters the next cycle.
Products Description
Main Features– Strong Power: Driven by hydraulics. it can provide a pressure of dozens to hundreds of tons. enabling processing of metal materials with a thickness of 10-30mm.- Easy Operation: Equipped with a manual control panel or numerical control system. it allows quick adjustment of punching position and shearing length; some models support automatic feeding.- High Safety: It is equipped with safety devices such as two-hand start. emergency stop. and protective barriers to reduce the risk of misoperation.- Wide Applicability: It can process carbon steel. stainless steel. aluminum alloy. etc.. meeting the basic processing needs of multiple industries.
item | value |
Type | Q35Y-16 |
Maximum pressure (KN) | 600 |
The size of the sheet sheared in a single stroke (thickness × width) (mm) | 16*250 8*400 |
Tensile strength of sheet metal | ≤450N/mm2 |
Weight (kg) | 1800 |
Dimension(L*W*H)(mm) | 1640*730*1770 |
Power(kw) | 4 |
Slipper stroke(mm) | 80 |
Cutting angle (mm) | 8° |
Throat depth (mm) | 300 |
punching thickness(mm) | 16 |
Maximum punching diameter(mm) | 25 |
Travel times(cycle/min) | 8 |
Place of origin | China |
Brand name | Jetamc |
Automation | Semi-automatic |
Types of shearable profiles | Round steel. square steel. channel steel. angle steel. T-steel |
