Description

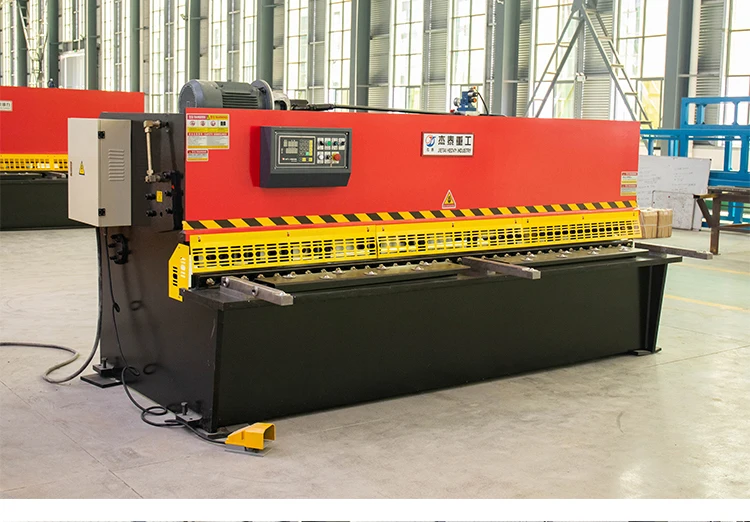

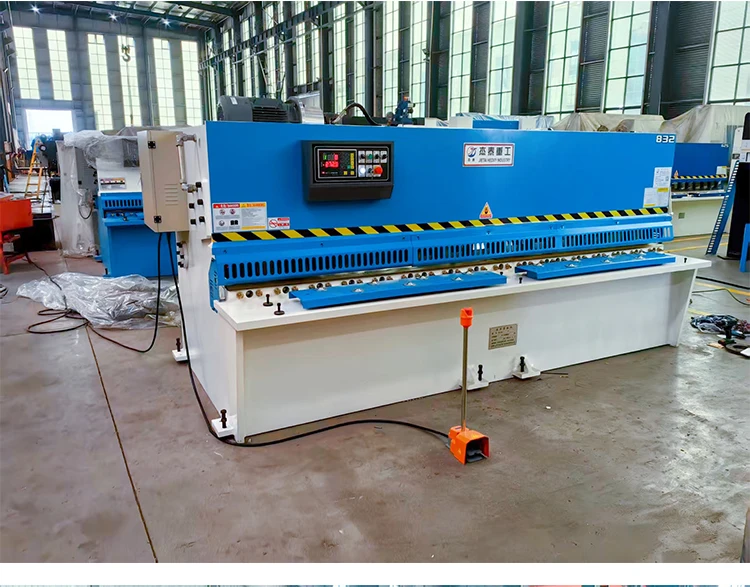

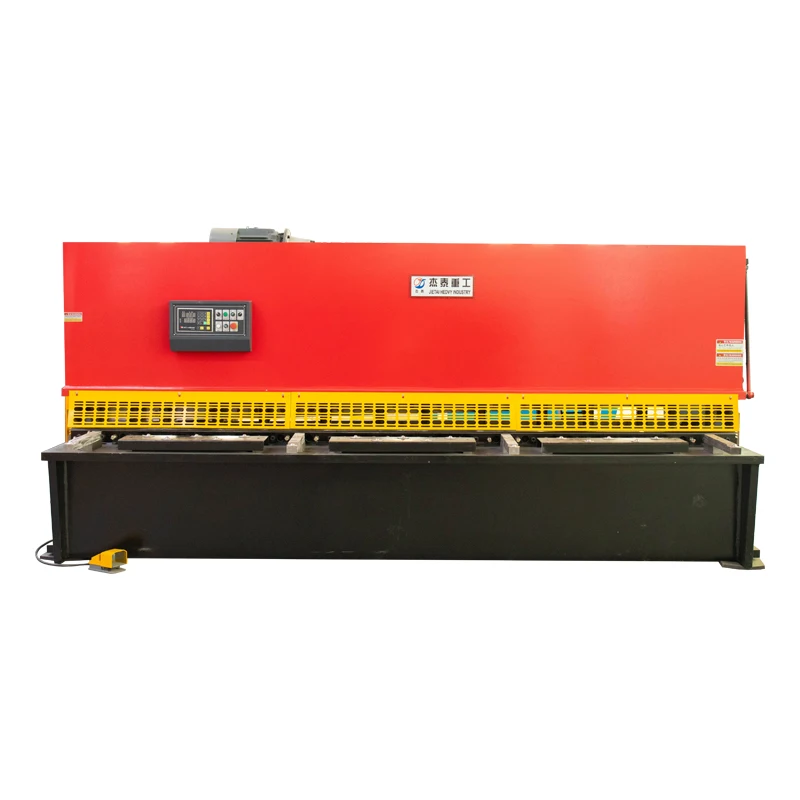

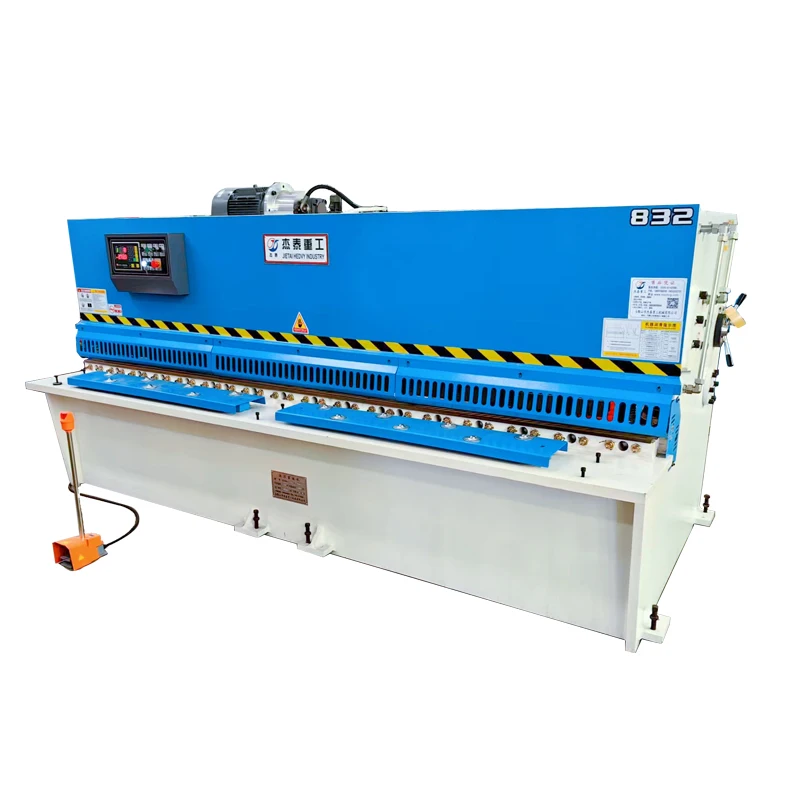

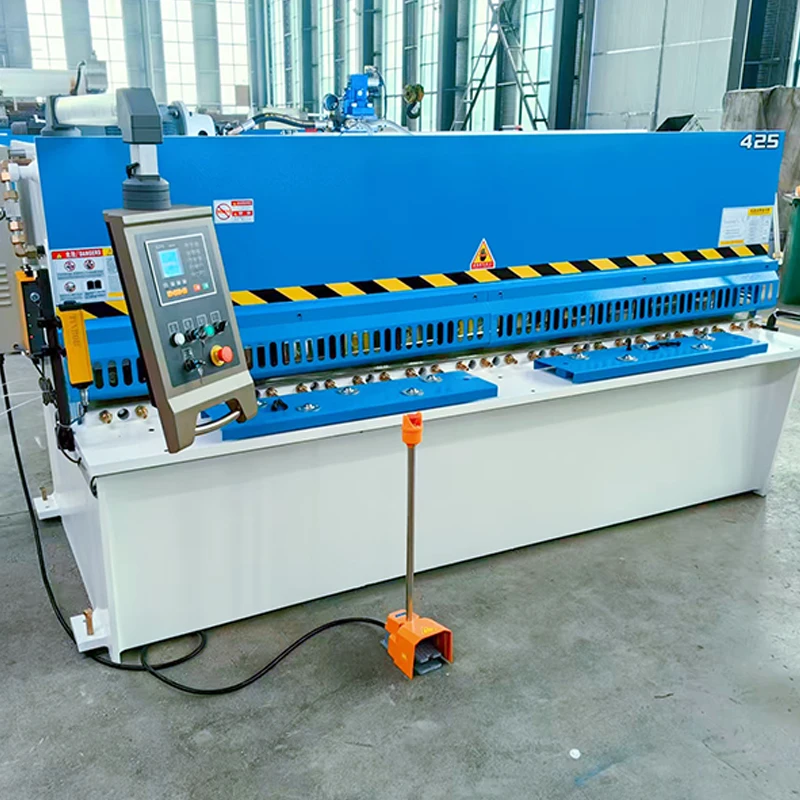

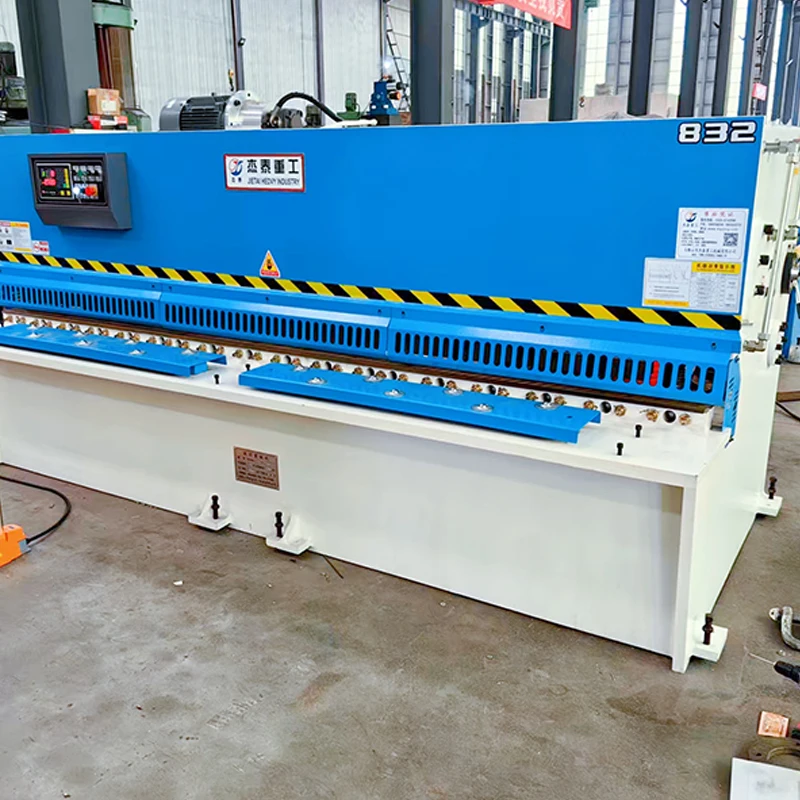

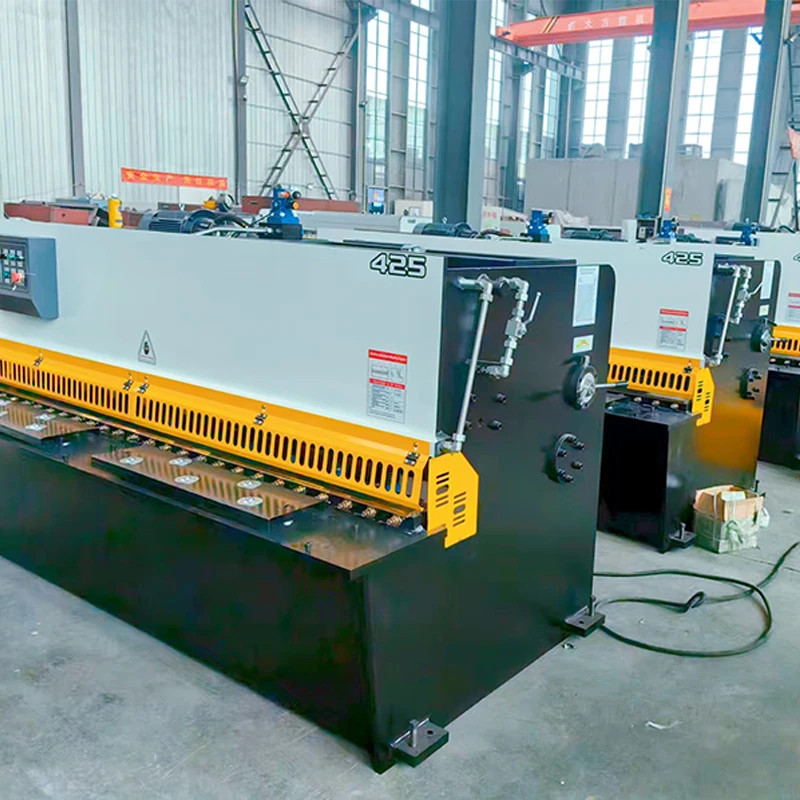

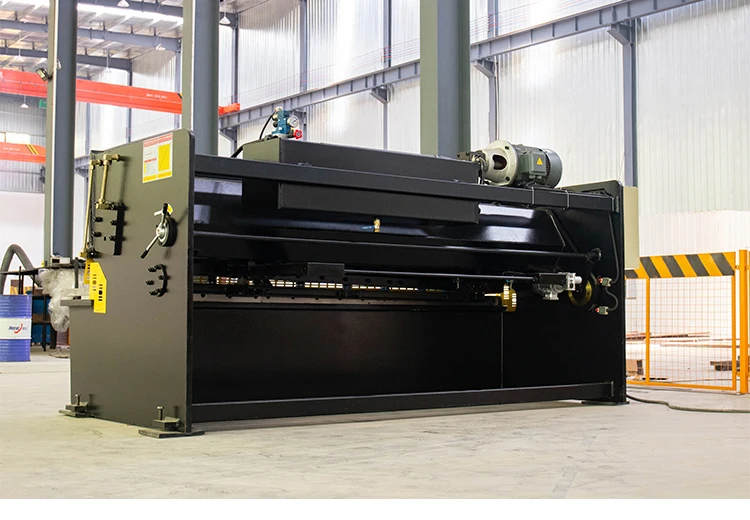

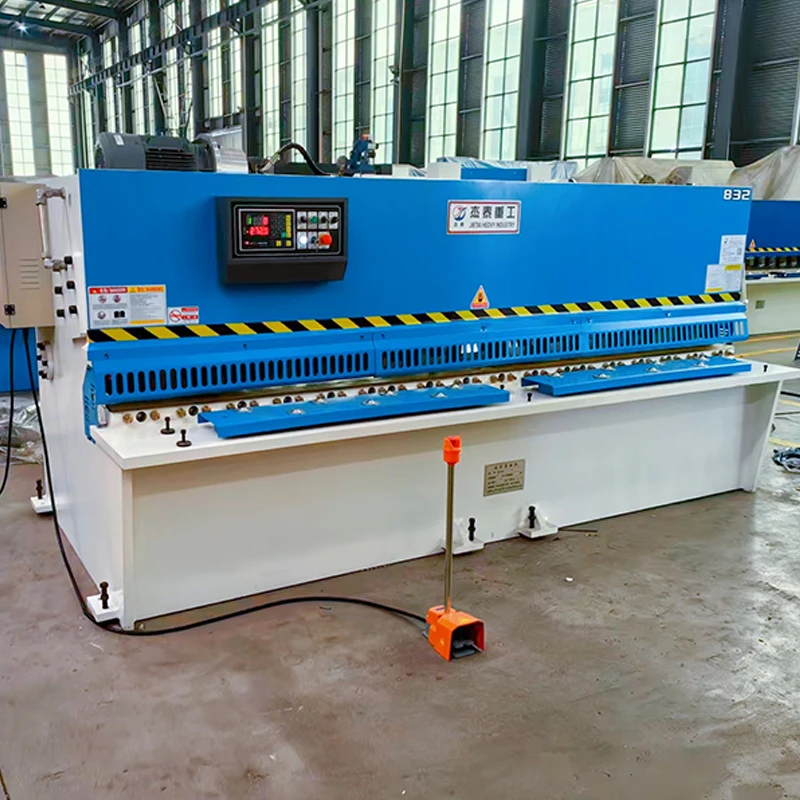

Hydraulic swing beam shears are metal plate processing equipment that uses hydraulic transmission as power and adopts a swing-type shearing structure. They are mainly used for cutting metal plates such as carbon steel. stainless steel. and aluminum alloy. and are widely applied in fields including hardware manufacturing. home appliance production. architectural decoration. and light industry. Particularly suitable for batch or single-piece shearing of medium and thin plates (usually with a thickness ≤ 20mm). they are one of the common basic devices in metal plate processing

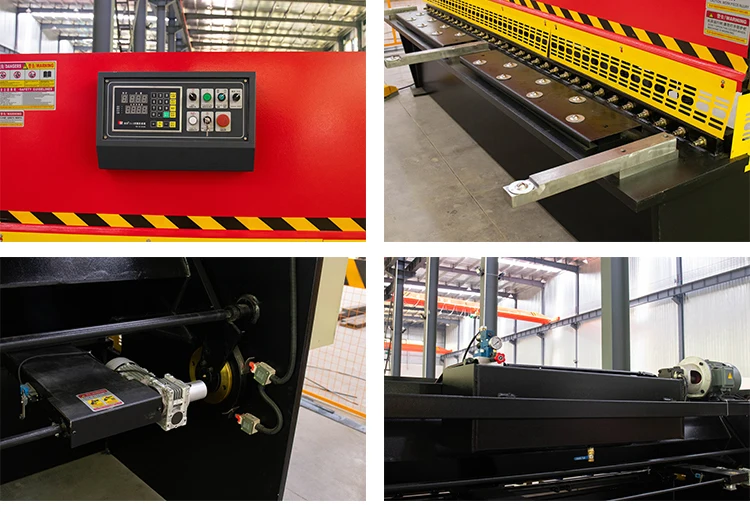

Core Structure Hydraulic System: Composed of a hydraulic pump. hydraulic cylinder. control valve group. etc.. it provides power for the equipment. featuring stable operation and uniform shearing force output.- Swing-type Tool Post: The tool post swings around a fixed axis (similar to "scissors opening and closing"). The blade is installed at an angle. and during shearing. it makes diagonal contact with the plate. reducing shearing resistance and minimizing plate deformation.- Workbench and Material Stopper: The workbench surface is equipped with a wear-resistant pad to protect the plate and the workbench surface. The material stopper can be adjusted manually or electrically to accurately control the shearing size.- Safety Protection: Standard configurations include hand guards and emergency stop buttons; some models are equipped with photoelectric protection to prevent safety accidents during operation.
Working Principle
1. The operator adjusts the position of the material stopper and sets shearing parameters according to the plate
size.
size.
2. After starting the equipment. the hydraulic system drives the tool post to swing around the axis. and the blade comes into contact with the plate on the workbench surface.
3. With the help of hydraulic pressure. the shear strength of the plate is overcome. and diagonal shearing is completed.
4. After shearing. the tool post resets under the action of the return mechanism.
The plate is taken out. and the next processing cycle can begin
The plate is taken out. and the next processing cycle can begin
Main Features High Shearing Efficiency: The swing-type shearing structure results in a small contact area between the blade and the plate. low resistance. and fast shearing speed. making it suitable for batch processing of medium and thin plates.- Easy Operation: With a relatively simple structure. manual models adjust parameters via knobs; numerical control models (some types) are equipped with simple control systems. which are easy to learn and require low maintenance effort.- Mainly Adapted to Thin Plates: Its core advantage lies in shearing medium and thin plates (usually with a thickness of 1mm-20mm). The sheared plates have good flatness and are less prone to warping. making it suitable for scenarios such as home appliance casings and hardware accessories.- Lower Cost: Compared with hydraulic guillotine shears. it has a lower structural complexity. and the equipment purchase and maintenance costs are more economical. making it suitable for small and medium-batch production or scenarios with limited budgets.
Products Description
Application Scenarios Home Appliance Industry: Cutting thin plates for casings of home appliances such as refrigerators. washing machines. and air conditioners.- Hardware Field: Processing small metal parts such as hardware accessories. kitchen utensils. and door/window hardware.- Architectural Decoration: Cutting thin metal plates for decorative purposes such as suspended ceilings. curtain walls. and guardrails.- Light Industry Manufacturing: Producing small thin-plate products such as stationery and medical device accessories.

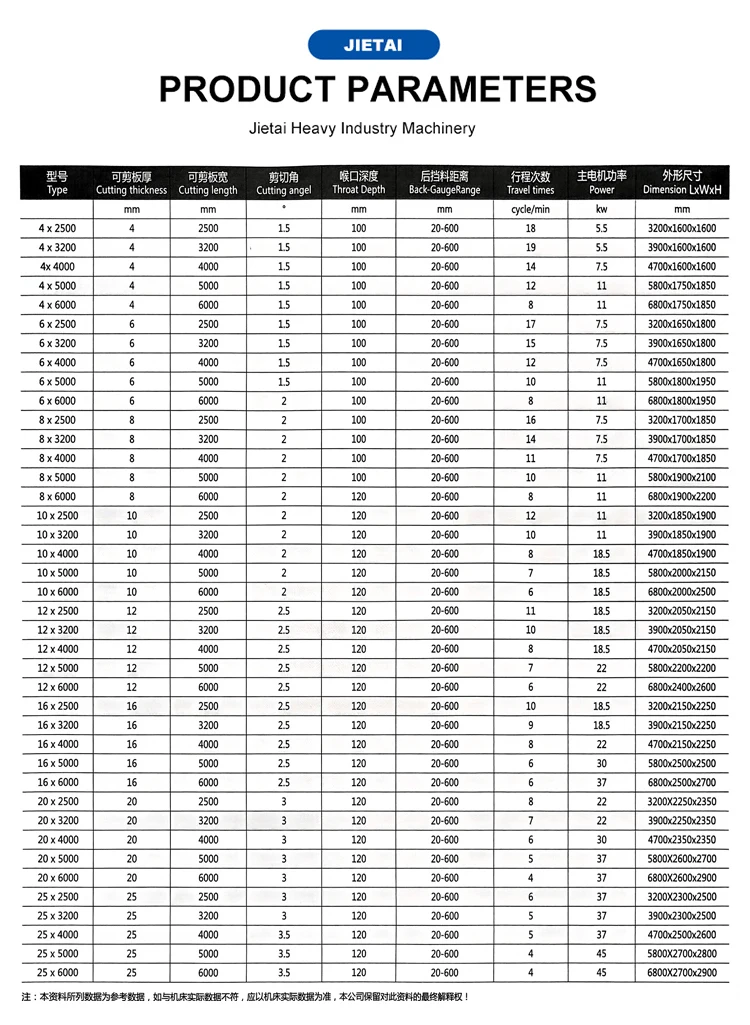

item | value |
Type | QC12K-8*3200 |
Cutting thickness (mm) | 8 |
Cutting length (mm) | 3200 |
Material / metal processed | Carbon Steel. STAINLESS STEEL. aluminum |
Weight (kg) | 5700 |
Dimension(mm) | 3900*1700*1850 |
Power(kw) | 7.5 |
Warranty | 1 years |
Core components | Bearing. Gearbox. PLC. GEAR. MOTOR |
Cutting angle (mm) | 2 |
Throat depth (mm) | 100 |
Back-GaugeRange(mm) | 20-500 |
Travel times(cycle/min) | 12 |
Place of origin | China |
Brand name | Jetamc |
Automation | Semi-automatic |
Key selling points | High-accuracy |
