Description

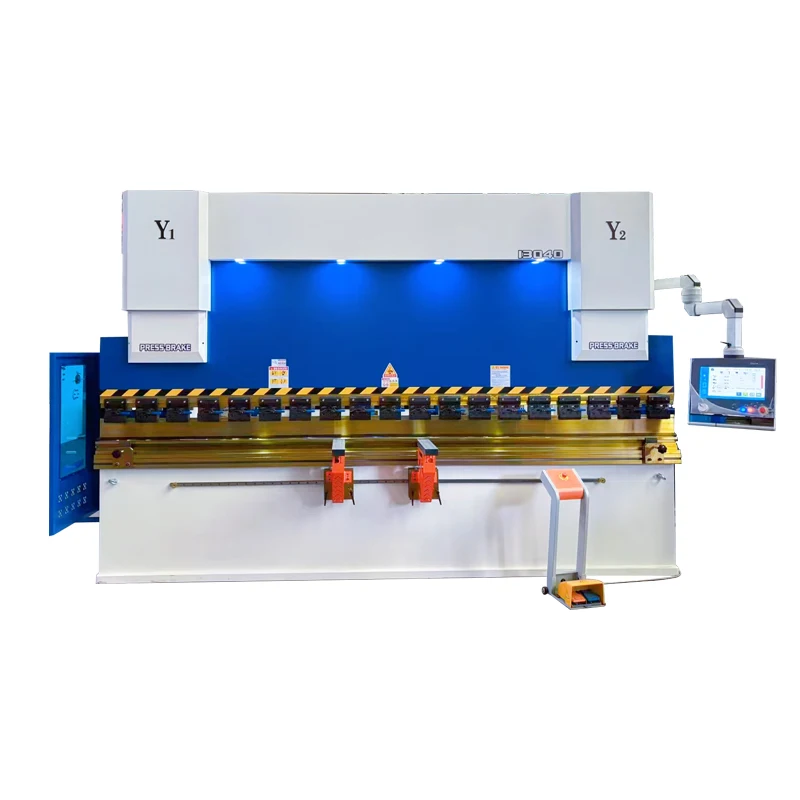

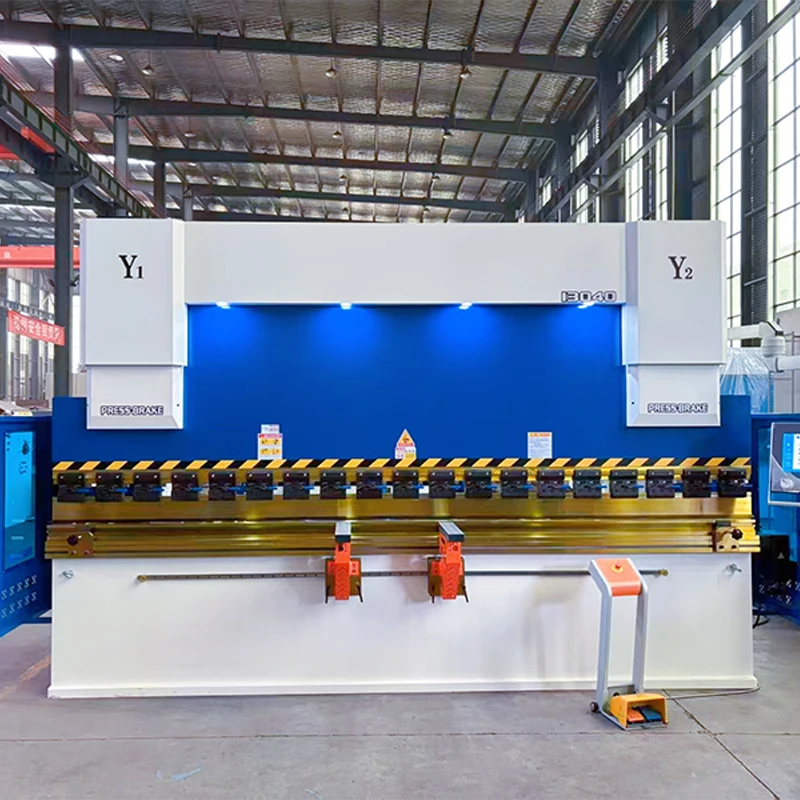

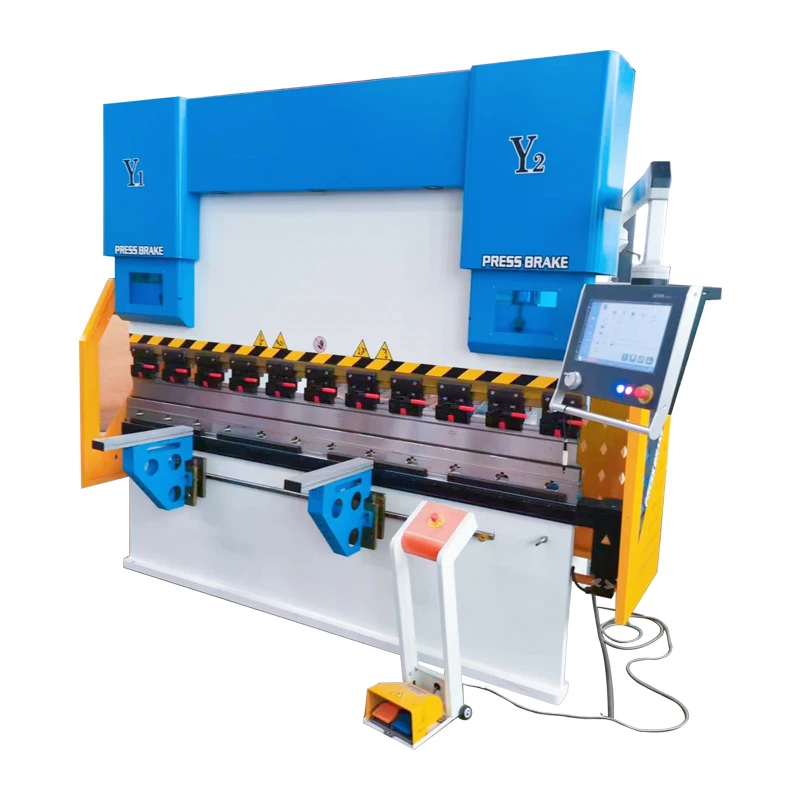

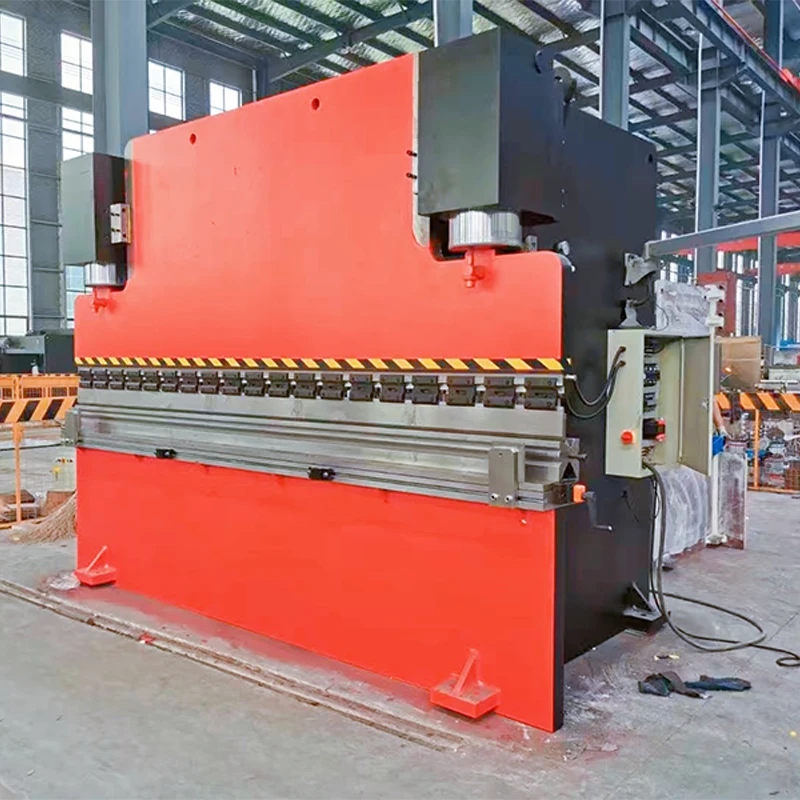

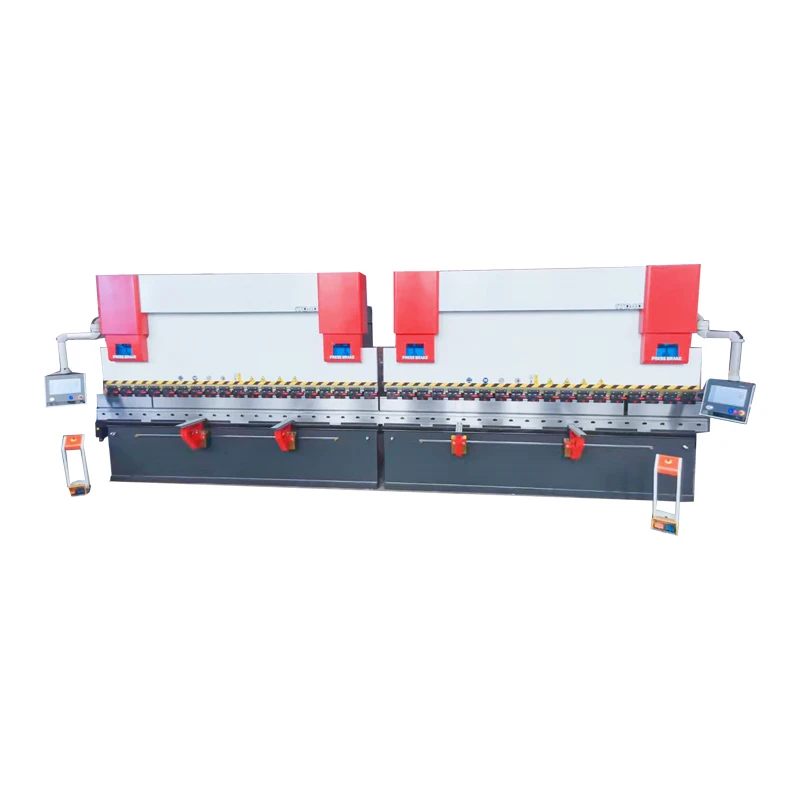

An electro-hydraulic CNC press brake is a high-precision metal sheet bending equipment that combines electro-hydraulic transmission technology and CNC (Computer Numerical Control) system. It is widely used in fields such as sheet metal processing. automobile manufacturing. construction machinery. and home appliance production. Its core function is to bend metal sheets (e.g.. steel plates. aluminum plates) into specific angles or shapes (e.g.. U-shape. V-shape. right angle. etc.) according to preset programs.
CNC SystemIt is equivalent to the "brain" of the equipment. Bending parameters (such as bending angle. bending speed. sheet thickness compensation. etc.) can be set through programming. It supports the storage of multiple processing schemes. and during operation. it can run automatically just by calling the program.
Electro-Hydraulic Transmission SystemComposed of a motor. hydraulic pump. oil cylinder. valve group. etc.. it is responsible for providing bending power. The motor drives the hydraulic pump to generate high-pressure oil; the CNC system controls the valve group to deliver the high-pressure oil to the oil cylinder. which then pushes the slider (driving the upper die) to move downward. Cooperating with the workbench (where the lower die is fixed). it exerts pressure on the sheet to complete the bending process.
Mechanical Structure– Slider and Die: The upper die is fixed on the slider. and the lower die is fixed on the workbench. The shape of the die is customized according to bending requirements (e.g.. V-shaped die. U-shaped die).- Workbench: Some equipment is equipped with a "deflection compensation device". which can offset the slight deformation of the workbench during bending and further improve the bending accuracy.
Main Features– High Precision: The control accuracy of the CNC system can reach within 0.1°. Combined with the stable transmission of the electro-hydraulic proportional valve. it can meet the requirements of complex and high-precision bending.- High Efficiency: It supports automatic programming and parameter storage. eliminating the need for repeated adjustments during batch processing.- Easy Operation: Mainstream equipment is equipped with a touch screen and supports graphical programming (some can import CAD drawings to automatically generate programs). Novices can get started after simple training.
Typical Application Scenarios– Sheet Metal Processing: Bending of the shells of distribution boxes and power distribution cabinets.- Automotive Industry: Bending and forming of automobile frames. doors. and chassis components.- Home Appliance Manufacturing: Processing of the shells of refrigerators and washing machines. and the frames of outdoor air conditioners.- Construction Machinery: Bending of structural parts of excavators and loaders.
Products Description
item | value |
Bending force (KN) | 1250 |
Length of working table (mm) | 4000 |
Automatic level | Fully Automatic |
Material / metal processed | Carbon Steel. STAINLESS STEEL. aluminum |
Weight (kg) | 7300 |
Dimension(mm) | 4300*1600*2400 |
Warranty | 1 years |
Core components | Bearing. Gearbox. PLC. GEAR. MOTOR |
Slider stroke (mm) | 500 |
Throat depth (mm) | 320 |
Place of origin | China |
Brand name | Jetamc |
Automation | Automatic |
Key selling points | High-accuracy |
1. who are we?
We are based in Anhui. China. start from 2025.sell to Oceania(10.00%).Africa(10.00%).Southeast Asia(10.00%).Eastern
Europe(10.00%).South America(10.00%).South Asia(10.00%).North America(10.00%).Mid East(5.00%).Domestic Market(5.00%).Northern
Europe(5.00%).Central America(5.00%).Western Europe(5.00%).Eastern Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
press brake.Shearing Machine.rolling machine
4. why should you buy from us not from other suppliers?
The registered address of the enterprise is located at No. 2. Building 1. Jinye Huayuan. Bowa Town. B District. Ma'anshan City.
Anhui Province. The industry it belongs to is wholesale trade. and the business scope includes: general items: import and export
5. what services can we provide?
Accepted Delivery Terms: FOB.CFR.CIF.EXW;
Accepted Payment Currency: USD.CNY;
Accepted Payment Type: T/T.L/C;
Language Spoken: English.Chinese.Spanish.Japanese.Portuguese.German.Arabic.French.Russian.Korean.Hindi.Italian
We are based in Anhui. China. start from 2025.sell to Oceania(10.00%).Africa(10.00%).Southeast Asia(10.00%).Eastern
Europe(10.00%).South America(10.00%).South Asia(10.00%).North America(10.00%).Mid East(5.00%).Domestic Market(5.00%).Northern
Europe(5.00%).Central America(5.00%).Western Europe(5.00%).Eastern Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
press brake.Shearing Machine.rolling machine
4. why should you buy from us not from other suppliers?
The registered address of the enterprise is located at No. 2. Building 1. Jinye Huayuan. Bowa Town. B District. Ma'anshan City.
Anhui Province. The industry it belongs to is wholesale trade. and the business scope includes: general items: import and export
5. what services can we provide?
Accepted Delivery Terms: FOB.CFR.CIF.EXW;
Accepted Payment Currency: USD.CNY;
Accepted Payment Type: T/T.L/C;
Language Spoken: English.Chinese.Spanish.Japanese.Portuguese.German.Arabic.French.Russian.Korean.Hindi.Italian
4+1 Axis CNC Automatic Hydraulic Press Brake Fold Sheet Metal Aluminum Bending Machine End Forming Including Carbon Steel Motor
